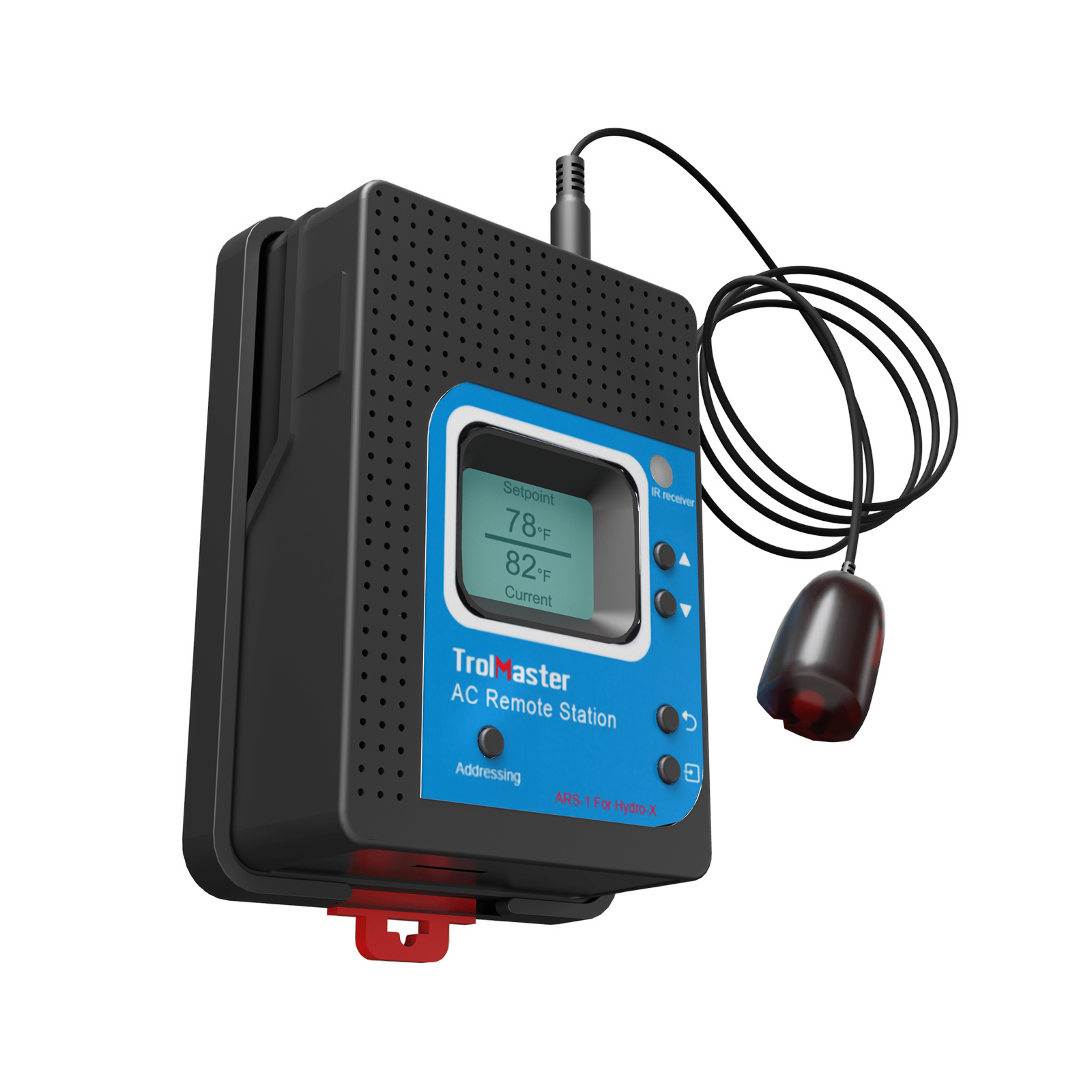

The ARS-1 TrolMaster AC Remote Station is an innovative solution designed to simplify and automate temperature control for mini-split air conditioning systems. Compatible with most IR (infrared) remote-controlled AC units, including mini-splits and some window-type ACs, the ARS-1 allows users to integrate day and night temperature settings seamlessly. By learning and replicating IR signals from the original remote controllers, the ARS-1 adjusts set points based on photocell sensor status, ensuring optimal comfort and energy efficiency.

Features:

• LCD Display: Provides clear visibility of settings and operational status.
• Seamless Integration: Connects effortlessly with the Hydro-X Control System for centralized environmental management.
• Micro-SD Card: Allows for convenient firmware updates to enhance functionality over time.
• Specifications:
  • Output Voltage: 0~11.5V
  • Maximum Current: 0.2A
  • Working Environment: Temperature 32-122°F, Humidity ≤90%
  • Package Dimensions: 160mm (L) x 86mm (W) x 86mm (H)
  • Gross Weight: 0.43 kg

• ARS-1 TrolMaster AC Remote Station
• Micro-SD Card for Firmware Upgrades
• User Manual

Using the ARS-1 TrolMaster AC Remote Station is user-friendly and efficient:

1. Installation: Connect the ARS-1 to the Hydro-X Control System or use it as a standalone unit. Follow the setup instructions to pair the ARS-1 with your specific AC unit using the original IR remote control.
2. Programming: Set desired day and night temperature set points using the LCD display and intuitive controls. The ARS-1 will automatically adjust the AC unit’s settings based on the photocell sensor, ensuring optimal temperature control throughout the day.
3. Integration: Seamlessly integrate the ARS-1 with other TrolMaster devices or automation systems for comprehensive environmental control in indoor spaces.
4. Maintenance: Periodically update the firmware using the Micro-SD card to access the latest features and improvements.

Best Usage Tips:

• Ensure the ARS-1 is positioned within the range of the AC unit’s IR sensor for reliable signal transmission.
• Verify compatibility with your specific mini-split or window-type AC unit before installation.
• Monitor environmental conditions to ensure the ARS-1 operates within the specified temperature and humidity range for optimal performance.
