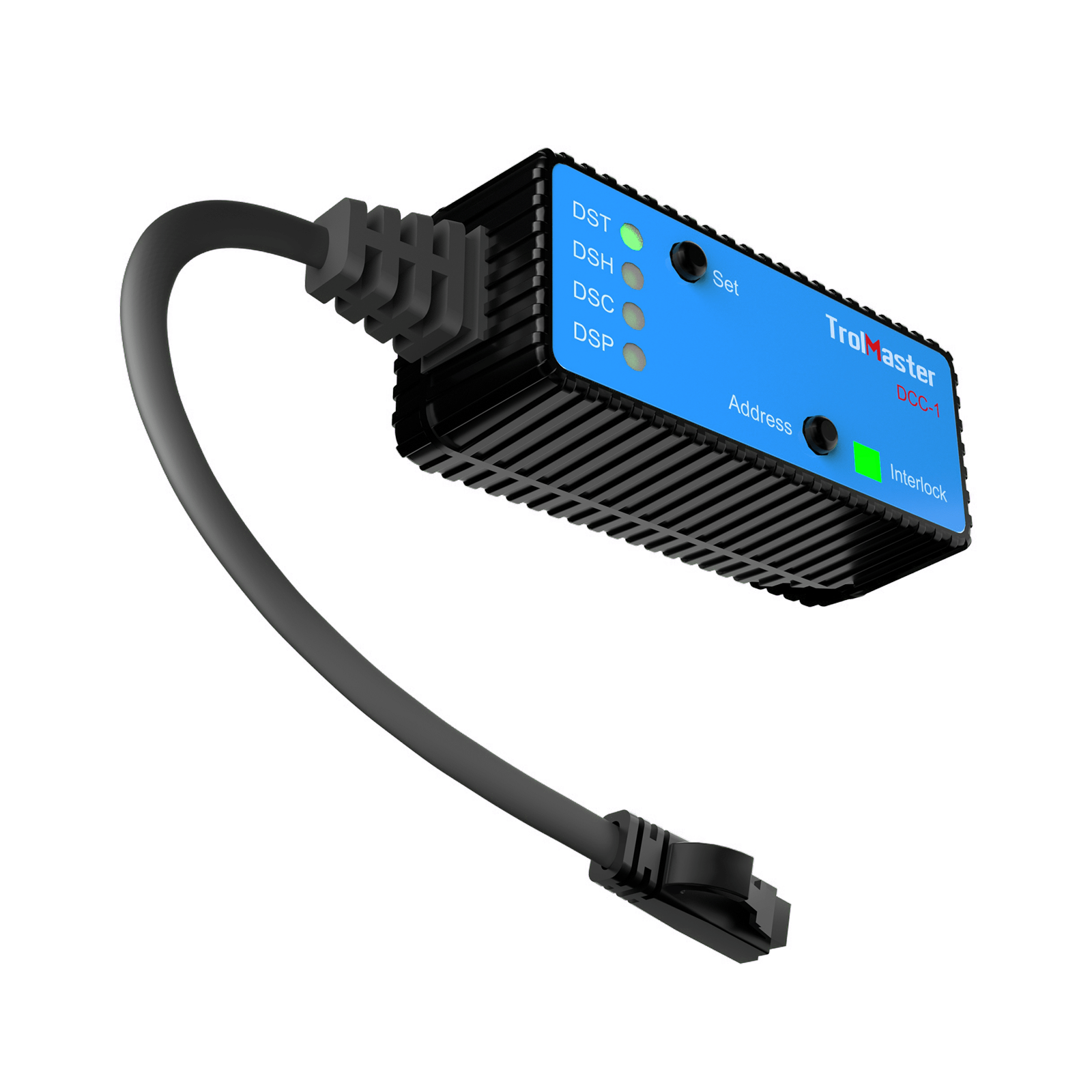

The DCC-1 TrolMaster Dual Condition Adapter is a versatile control device designed to enhance the functionality of the TrolMaster Hydro-X system. It provides a straightforward solution for controlling a single device based on multiple environmental conditions. Whether you need to manage temperature, humidity, CO2 levels, or lighting in your indoor cultivation environment, the DCC-1 ensures precise control and automation, optimizing plant growth conditions effortlessly.

Features:

• Compatibility: Designed for seamless integration with TrolMaster’s Hydro-X system and plug-in style modules.
• Versatility: Supports a wide range of environmental control applications in indoor cultivation, including temperature regulation, humidity management, CO2 control, and lighting adjustments.
• User-Friendly Design: The DCC-1’s intuitive interface and flexible programming options make it easy to customize and adapt to specific growing conditions.
• Enhanced Automation: Automate critical environmental controls to maintain optimal growing conditions, promoting healthier and more productive plants.

• DCC-1 Dual Condition Adapter
• RJ12 Cable (built-in)
• User Manual

Using the DCC-1 TrolMaster Dual Condition Adapter is efficient and customizable:

1. Integration with Plug-In Modules: Connect the DCC-1 to one of TrolMaster’s plug-in style modules (DSC-1, DSH-1/2, DST-1/2, DSP-1) using the built-in RJ12 cable. This integration allows the DCC-1 to coordinate with the selected module to control the connected device.
2. Setting Conditions: Utilize the “Interlock” function to configure the behavior of the connected device:
   • Interlock OFF: Allows either condition associated with the paired modules to activate the device individually. This setting is ideal for scenarios where conditions like temperature or humidity can independently trigger actions, such as turning on exhaust fans.
   • Interlock ON: Requires both conditions to be met simultaneously for the device to activate. This setting ensures that actions are synchronized, such as shutting off CO2 when an exhaust fan is running or adjusting lighting based on temperature thresholds.
3. Operation Modes:
   • Parallel Mode: Modules operate independently, triggering the device based on individual conditions (Interlock OFF).
   • Series Mode: Modules operate in tandem, requiring both conditions to be met for device activation (Interlock ON).
4. Application Examples:
   • Interlock OFF:
     • Activate an exhaust fan based on high temperature or humidity levels.
     • Control nighttime exhaust fan operation using a recycling timer or high humidity trigger.
   • Interlock ON:
     • Automatically shut off CO2 supply when an exhaust fan is running to maintain optimal environmental balance.
     • Adjust lighting settings based on temperature fluctuations to prevent overheating.
