FAN Isomax Acoustic AC 250mm – 2310m³/hr Hi Power (10″)

High-Power Air Extraction With Advanced Acoustic Insulation

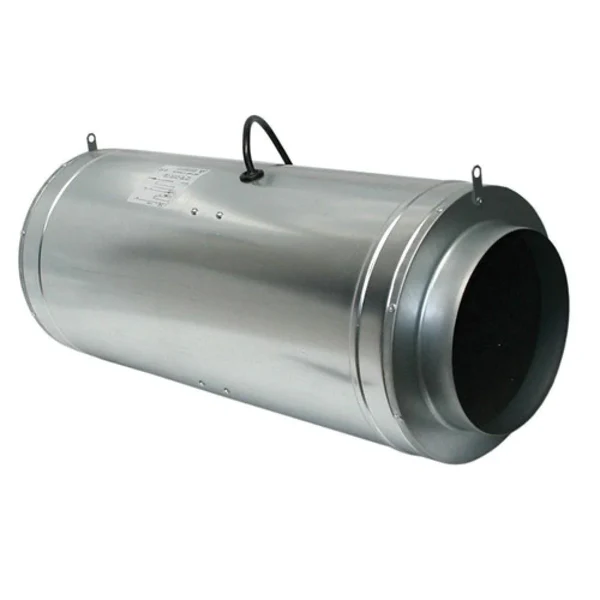

The Isomax Acoustic AC Fan 250mm (10″) is a high-capacity inline extraction fan engineered for powerful airflow combined with effective noise reduction. Delivering up to 2310m³/hr, this unit is designed for large grow rooms and demanding ventilation setups where both performance and sound control are critical.

Built using a high-quality AC motor, the Isomax fan provides consistent, reliable airflow suitable for continuous operation. What sets it apart is its integrated acoustic insulation system—the fan is enclosed within a sound-dampened casing, which significantly reduces noise compared to standard inline fans of similar power.

The insulated housing not only absorbs motor and airflow noise but also helps minimise vibration transfer through ducting, making it ideal for growers who need a quieter environment without sacrificing extraction strength.

Key Features:

• Airflow Capacity: Up to 2310m³/hr – suited for large-scale ventilation

• Duct Size: 250mm (10″)

• Motor Type: High-performance AC motor

• Acoustic Design: Integrated sound-insulated casing for reduced noise output

• Hi Power Output: Strong extraction for heat and humidity control

• Durable Construction: Built for continuous, long-term operation

• Compatibility: Works with fan speed controllers (voltage-based) and standard ducting systems

• 1 × FAN Isomax Acoustic AC 250mm -2310m3/hr Hi power (10″)

• Pre-wired power cable (UK plug)

• Integrated mounting points on casing

• Manufacturer label with technical specifications

How to Use the Product & Best Usage Recommendations:

Installation Guidance

Install the fan within your ducting system, ideally mounted securely using brackets or straps to reduce vibration transfer. Positioning the fan after a carbon filter (pulling air through it) will maximise odour control efficiency.

Ensure all duct connections are sealed tightly using clamps or aluminium tape to prevent air loss and maintain system pressure.

Operation & Control

• Can be run at full power or paired with a compatible AC fan speed controller

• When using a controller, ensure it is designed for AC motors to avoid humming or motor stress

• Suitable for both intake and extraction, though primarily used as an extractor

Best Usage Recommendations:

• Ideal for large grow tents, grow rooms, or commercial setups

• Pair with acoustic ducting and a silencer if ultra-low noise is required

• Regularly inspect for dust build-up inside ducting to maintain airflow efficiency

• Maintain good airflow balance—ensure adequate passive or active intake

The Isomax 250mm is best suited for growers needing serious extraction power with reduced noise, especially in environments where heat buildup and air exchange must be tightly controlled.
