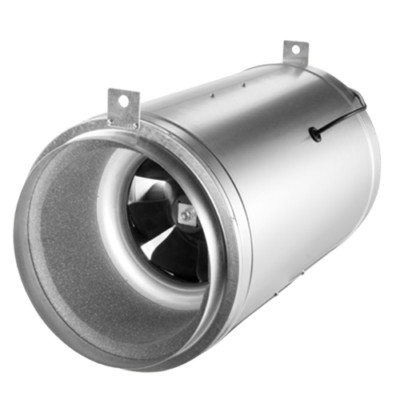

FAN Isomax Acoustic AC 315mm – 2380m³/hr Low Power (12″)

High-Capacity, Low-Noise Ventilation for Large Grow Spaces

The Isomax Acoustic AC Fan 315mm (12″) is a high-performance inline fan engineered for growers who need powerful airflow with controlled noise levels. Delivering up to 2380m³/hr, this fan is well-suited for large grow rooms, multi-light setups, or environments requiring strong air exchange through long duct runs and carbon filters.

Built with an acoustically insulated housing, the Isomax significantly reduces the mechanical and airflow noise typically associated with high-capacity fans. Inside, a reliable AC motor drives a backward-curved impeller, ensuring consistent airflow even under resistance from filters or ducting.

This “Low Power” version is designed to balance airflow efficiency and energy consumption, making it a practical choice for continuous operation without excessive running costs.

Key Features:

• Airflow Capacity: Up to 2380m³/hr – ideal for large-scale ventilation

• Flange Size: 315mm (12″)

• Motor Type: AC motor – durable and widely compatible

• Acoustic Insulation: Foam-lined housing reduces noise and vibration

• Low Power Variant: Optimised for efficiency while maintaining strong airflow

• High Pressure Capability: Performs well with carbon filters and long ducting

• Robust Construction: Designed for continuous use in demanding environments

• 1 × FAN Isomax Acoustic AC 315mm -2380m3/hr Low Power (12″)

• Integrated acoustic insulated корпус (housing)

• Pre-wired power cable (region-specific plug depending on supplier)

How to Use the Product & Best Usage Recommendations:

Installation

Install the fan inline within your ventilation system, typically:

• After a carbon filter for odour control

• Suspended using straps or mounts to minimise vibration transfer

• Positioned to extract warm air from the highest point in your grow space

Ensure all duct connections are tightly sealed to maintain airflow efficiency.

Operation & Control

• This AC fan can be used with standard fan speed controllers (voltage-based)

• Avoid running at extremely low speeds for extended periods, as this may affect motor longevity

• For optimal performance, match with appropriately sized ducting (315mm) and filters

Best Usage Recommendations:

• Ideal for large grow rooms, commercial setups, or multi-light tents

• Pair with a high-capacity carbon filter to maintain airflow balance

• Regularly check for dust buildup inside ducting and pre-filters to prevent airflow restriction

• Keep the fan suspended rather than floor-mounted to reduce noise transmission

Routine maintenance is minimal—periodically inspect connections and ensure unobstructed airflow.
